Pioneering connectivity concepts have propelled Sunway Communication into a global leader. With a broad range of products covering most of the transmit and receive chains, we understand the system impact of each critical component we supply. Our global customer base across multiple industries has made us experts in products for virtually any system: Bluetooth, WiFi, GNSS (GPS, Galileo, Glonass, Beidou, etc.), NFC, and of course the various cellular standards like 4G LTE and 5G with MIMO incl. related mm-wave components. Ultra-Wideband (UWB) is another technology where Sunway is taking a leading role. We have partnered with NXP Semiconductors and created UWB solutions, both off-the-shelf modules, tags and antennas as well as the capability to customize antennas and other solutions to customers worldwide.
Sunway UWB EVK-2 is delivered in a convenient and protective box.
EVK-2 connects two UWB modules in an anchor/tag configuration to allow you to demonstrate the positioning in locating modules operating in TWR (Two-Way-Ranging) / PDoA (Phase-Difference-of-Arrival) mode.
It can also help you to build and evaluate Real Time Location Systems (RTLS) using TDoA (Time-Difference-of-Arrival) mode.
For developing applications like RTLS, trackers, IoT, Smart Home, etc.
Specification：
? 2 UWB development boards
* 1 is pre-configured as tag board
* 1 is pre-configured as anchor board

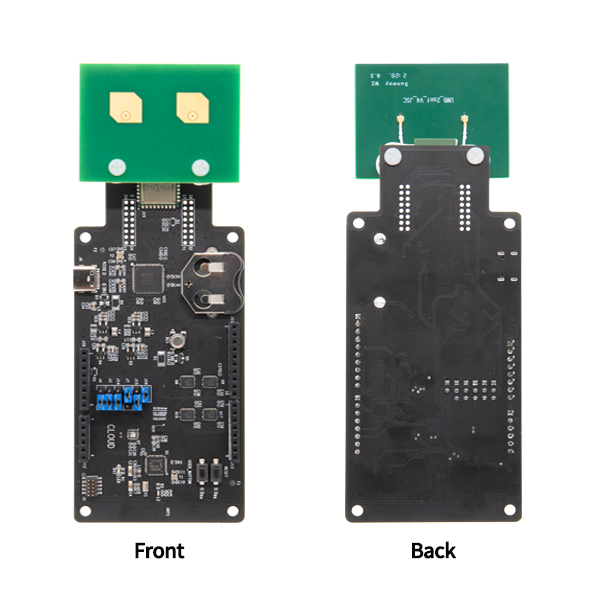

? Each board features
* 1 SW-M1000-SR-150 UWB module
* 1 SW-SU001 dual patch antenna (with coax cables)
* Host MCU QN9090
* Host interface: USB, BLE, UART, SPI
? Software
* UWB Software Development Kit
* UWB Demo application for PC/MAC
* Firmware for interaction with iPhone
Product and Supply Features：
Special Note:
The following items are provided by e-mail upon request:
? PC evaluation software
? EVK-2 start-up guide
To inquire or order, please e-mail:?marketing@sz-sunway.com
Version: May 2025 ? Sunway Communication
?
?
